起源の場所:
中国深Shenzhen
ブランド名:
Polcd
証明:
RoHS, ISO9001
モデル番号:
P028B129-IPS-TP
私達に連絡しなさい
Parameter:
| Item | Specification |

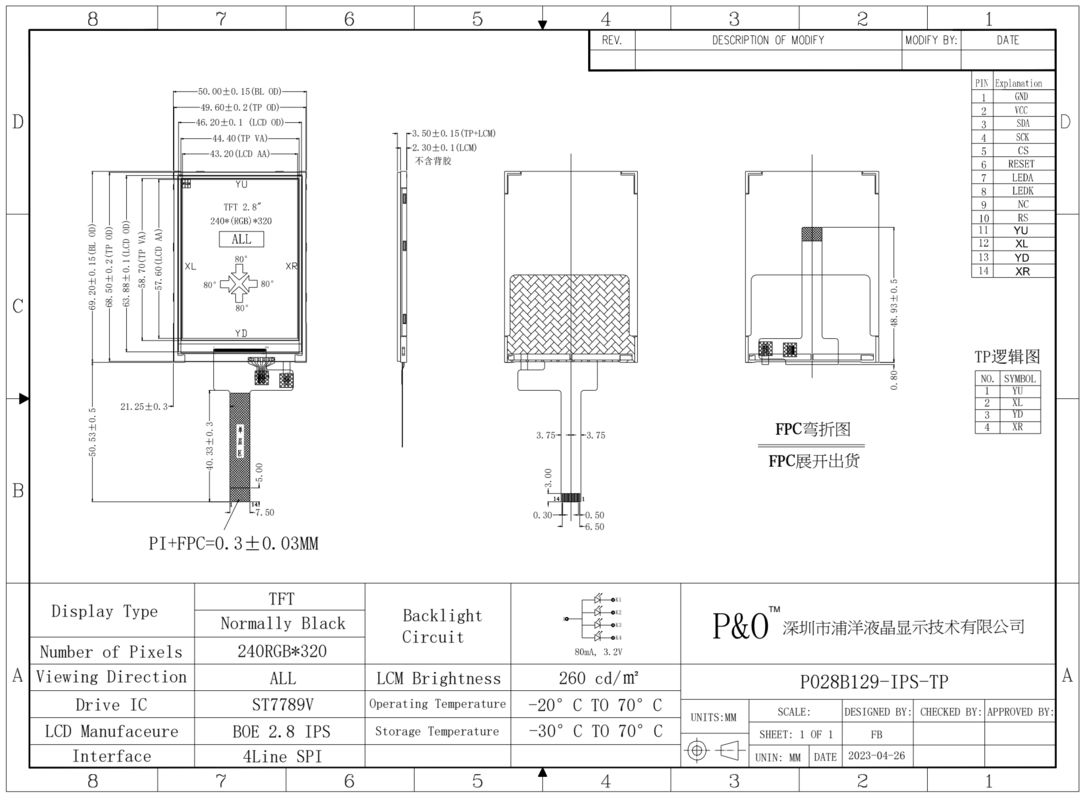

| Model | P028B129-IPS-TP |

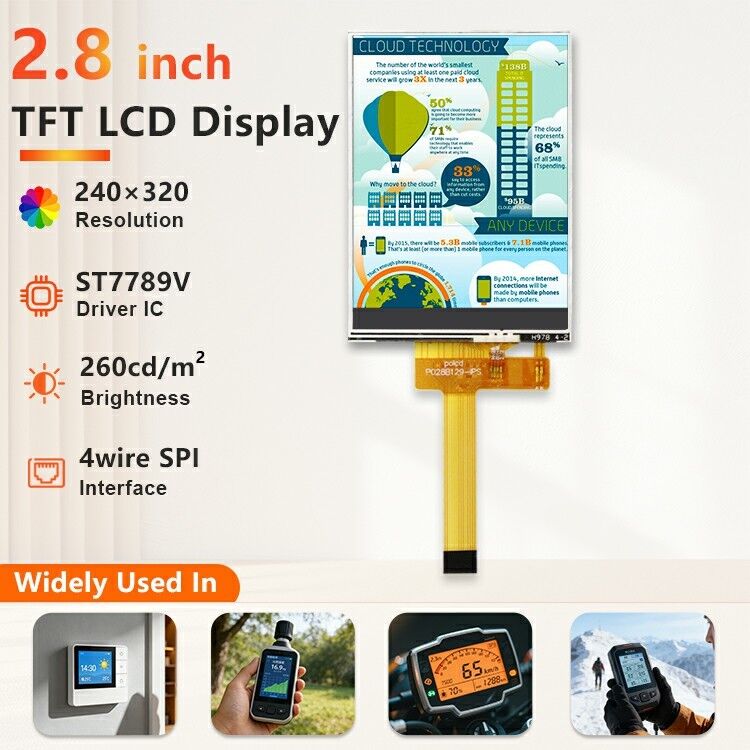

| Screen Size | 2.8 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 43.20(H)x57.60(V) |
| Pixel pitch | 0.180(H)x0.180(V)mm |
| Pins | 14 pins |

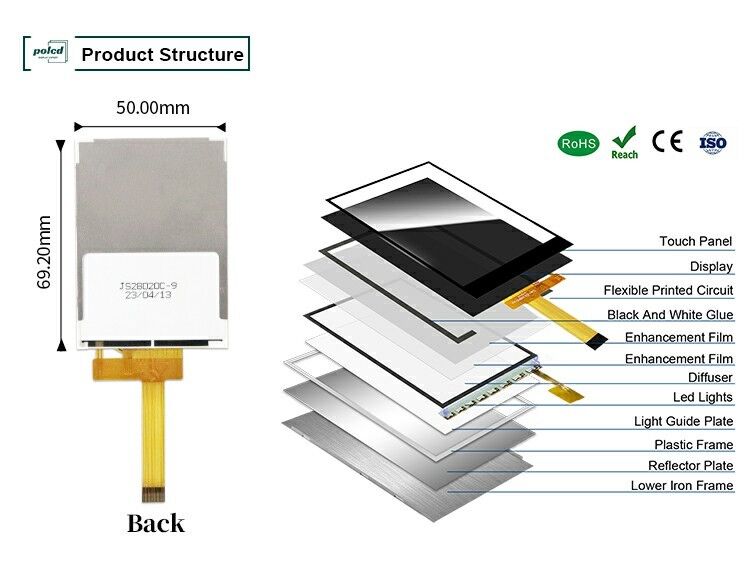

| Outline Dimension | 50.00x69.20x3.50mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 260 nit |
| Contrast Ratio | 1200:1 |
| Surface treatment | -- |
| Interface | 4wire SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
