起源の場所:
中国深Shenzhen
ブランド名:
Polcd
証明:
RoHS, ISO9001
モデル番号:
P028B125-IPS
私達に連絡しなさい
Description:

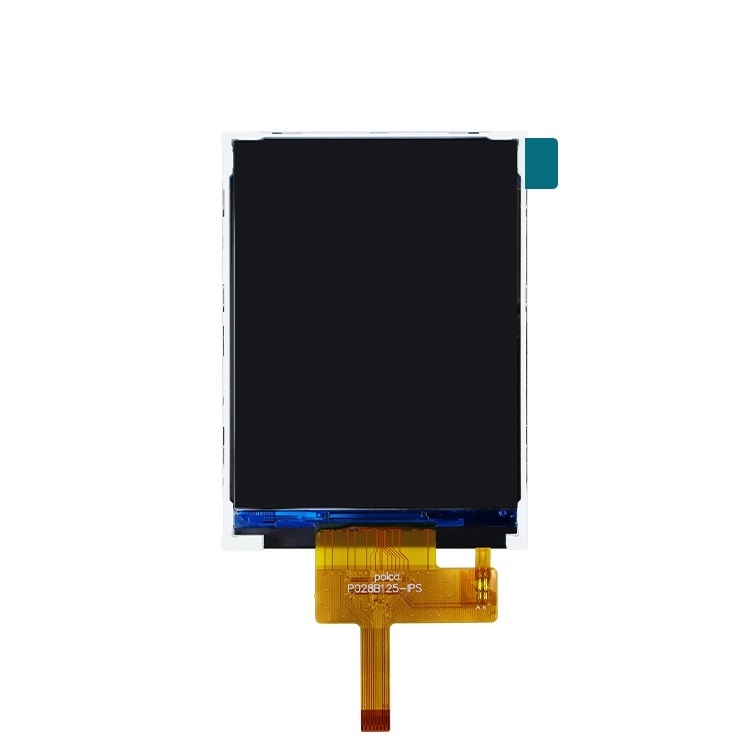

Suitable for a range of applications that require small form factor displays, this 2.8-inch TFT LCD display features IPS technology and an SPI interface, delivering high-quality visuals and efficient data transfer. It is a popular choice among manufacturers seeking reliable and efficient display solutions, thanks to its compact size and versatile functionality.

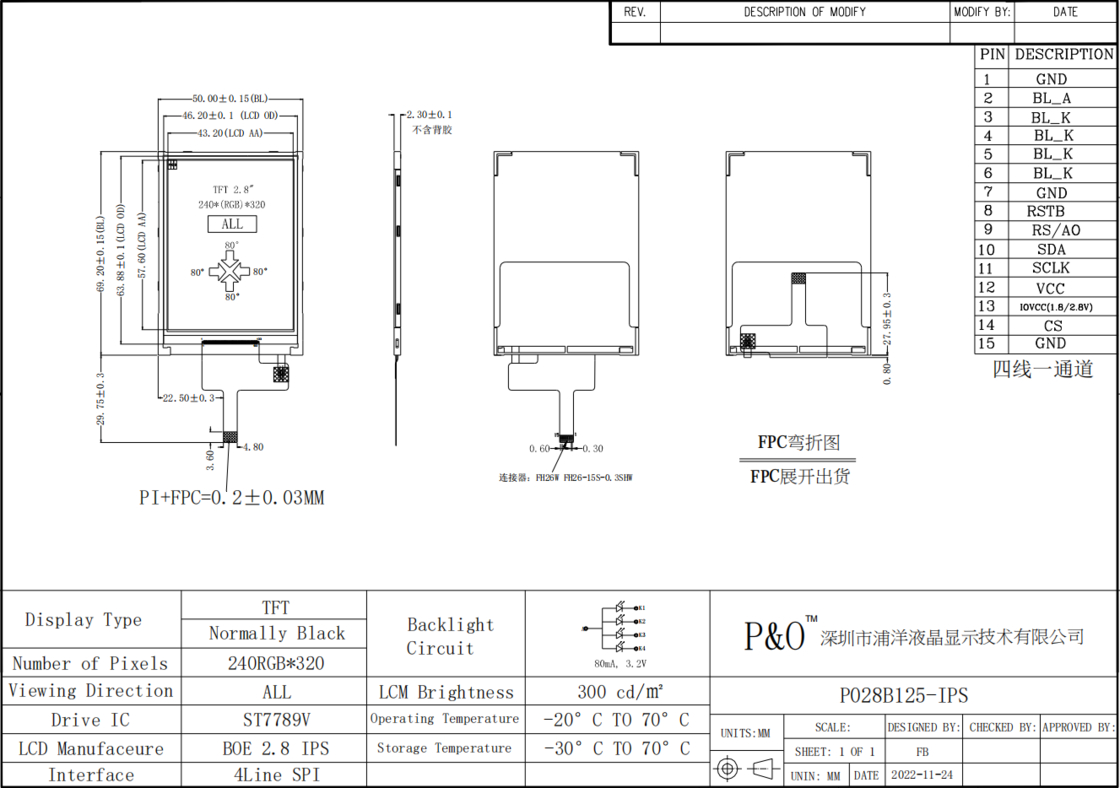

Parameter:
| Model No. | P028B125-IPS |
| Screen Size | 2.8 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Pin | 15 pins |
| Display area | 43.20(H)x57.60(V)mm |
| Pixel pitch | 0.180(H)x0.180(V)mm |
| Outline Dimension | 50.00x69.20x2.30mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1200:1 |
| Interface | 4wire SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
