起源の場所:
中国深Shenzhen
ブランド名:
Polcd
証明:
RoHS, ISO9001
モデル番号:
P024B042-V2-IPS-CTP について
私達に連絡しなさい
ビデオ
ビデオ

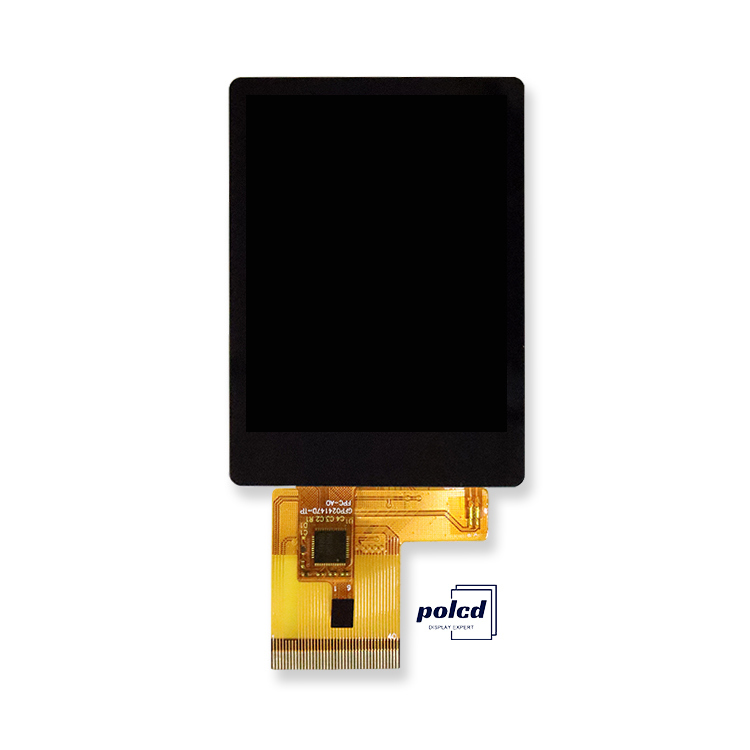

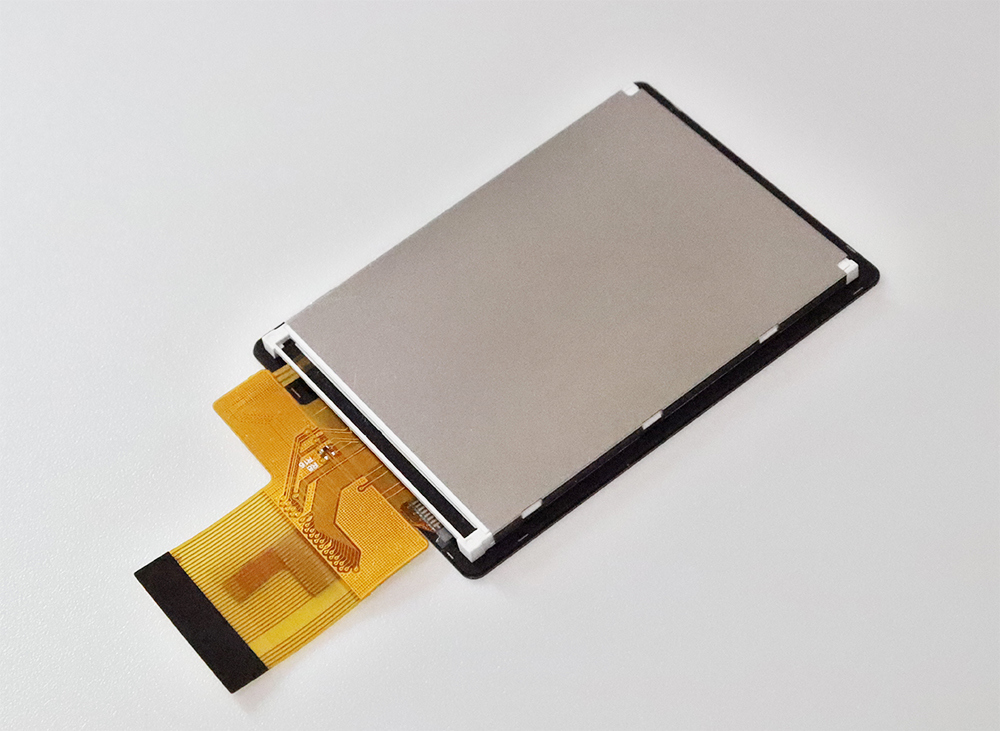

Description of 2.4 inch TFT LCD :
2.4 inch TFT LCD (Thin Film Transistor Liquid Crystal Display) is a small-size display module that uses TFT technology to provide high-quality color images and videos. The display has a diagonal screen size of 2.4 inches and a resolution of 240x320 pixels, providing clear and sharp images with accurate color representation.

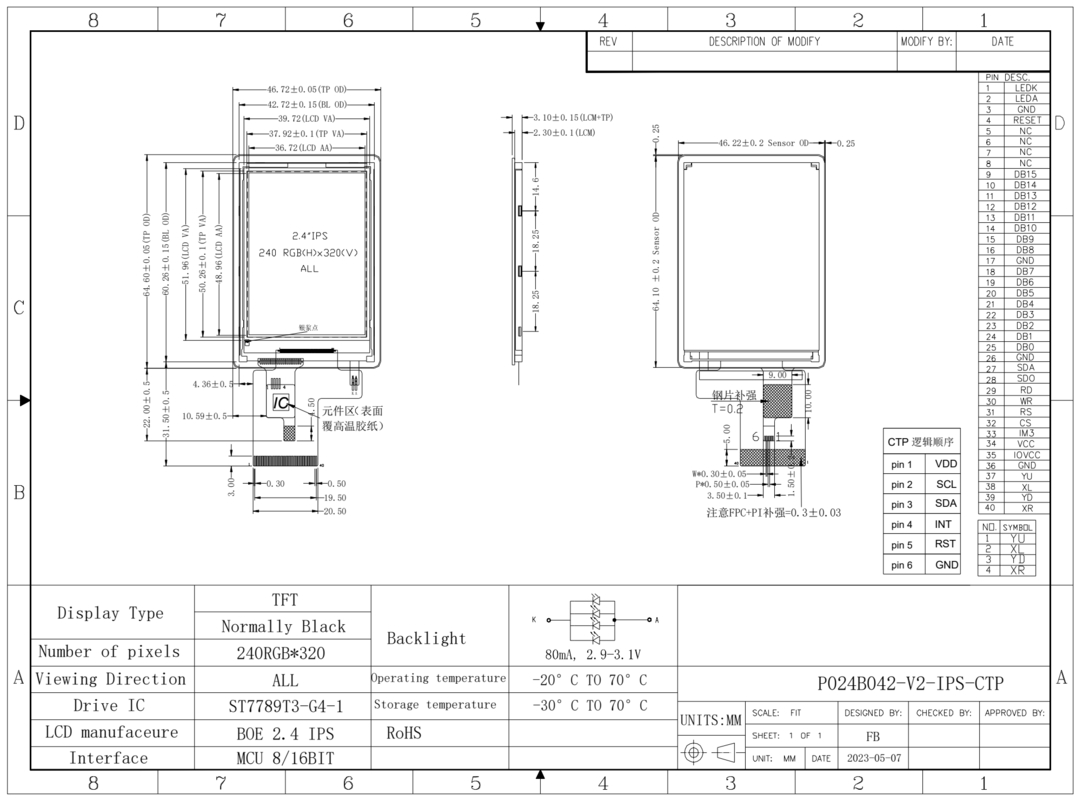

Parameter:
| Item | Specification |
| Model | P024B042-V2-IPS-CTP |
| Screen Size | 2.4 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 36.72(H)x48.96(V)mm |
| Pixel pitch | 0.153(H)x0.153(V)mm |
| Pins | 40 pins |
| Outline Dimension | 46.72x64.60x3.10mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Gray inversion direction | -- |
| Display Color | 262K |
| Luminance(cd/m2) | 450 nit |
| Contrast Ratio | 1200:1 |
| Surface treatment | -- |
| Interface | MCU 8/16BIT |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
