起源の場所:
中国深Shenzhen
ブランド名:
Polcd
証明:
RoHS, ISO9001
モデル番号:
P040HR015-IPS
私達に連絡しなさい
Parameter:
| Model | P040HR015-IPS |
| Screen Size | 4 inch |
| Number of Pixel | 480RGB(H)x800(V) |
| Pin | 40 pin |
| Display area | 51.84(H)x86.4(V)mm |
| Pixel pitch | 0.108(H)x0.108(V)mm |

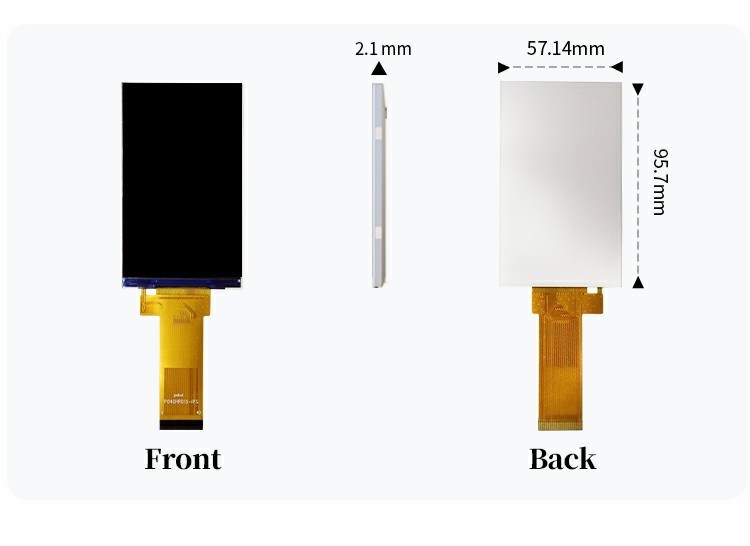

| Outline Dimension | 57.14x95.7x2.1mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 350 nit |
| Contrast Ratio | 1200:1 |
| Interface | RGB 24bit |
| Back-light | LED Side-light type |
| LCM IC | ST7701S |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
私達にあなたの照会を直接送りなさい
