起源の場所:
中国深Shenzhen
ブランド名:
Polcd
証明:
RoHS, ISO9001
モデル番号:
P040B006-IPS
私達に連絡しなさい
Introduction:

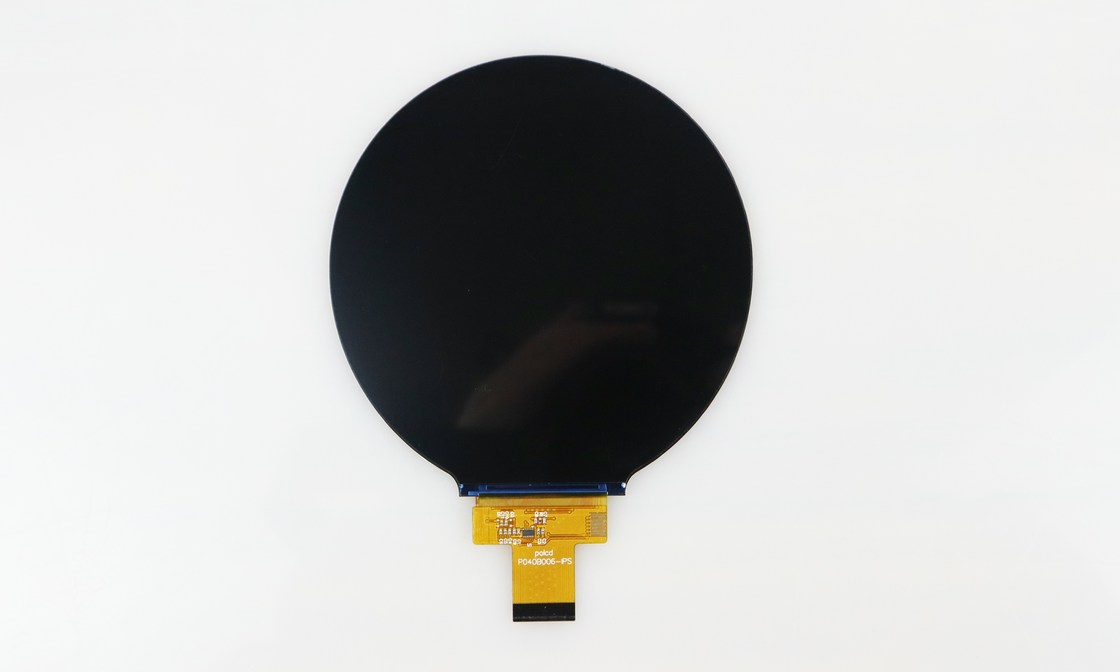

4 inch round TFT LCD is a compact and versatile display module that utilizes Thin-Film Transistor (TFT) technology. With a circular shape and a 4-inch diagonal size, it offers a visually appealing and space-efficient solution for various applications.
Parameter:
| Model | P040B006-IPS |
| Screen Size | 4.0 inch |
| Number of Pixel | 720RGB(H)x720(V) |
| Display area | 101.52(H)x101.52(V)mm |
| Pixel pitch | 0.047(H)x0.141(V)mm |
| Pin | 30 pin |
| Outline Dimension | 105.6x109.87x2.12mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 16.7M |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1200:1 |
| Interface | 4Line MIPI |
| Back-light | LED Side-light type |
| Drive IC | ST7703 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
Feature:
This TFT LCD module features a high-resolution color display, providing crisp and vibrant visuals with excellent image quality.
The round form factor of this LCD makes it particularly suitable for applications that require a circular display, such as smartwatches, fitness trackers, digital gauges, and other wearable devices. Its compact size and lightweight design make it easy to integrate into small electronic devices without compromising on visual performance.
The module supports a wide viewing angle, ensuring that the displayed content remains clear and readable from various perspectives.
