起源の場所:
中国深Shenzhen
ブランド名:
Polcd
証明:
RoHS, ISO9001
モデル番号:
P0395H01-V2
私達に連絡しなさい
Parameter:

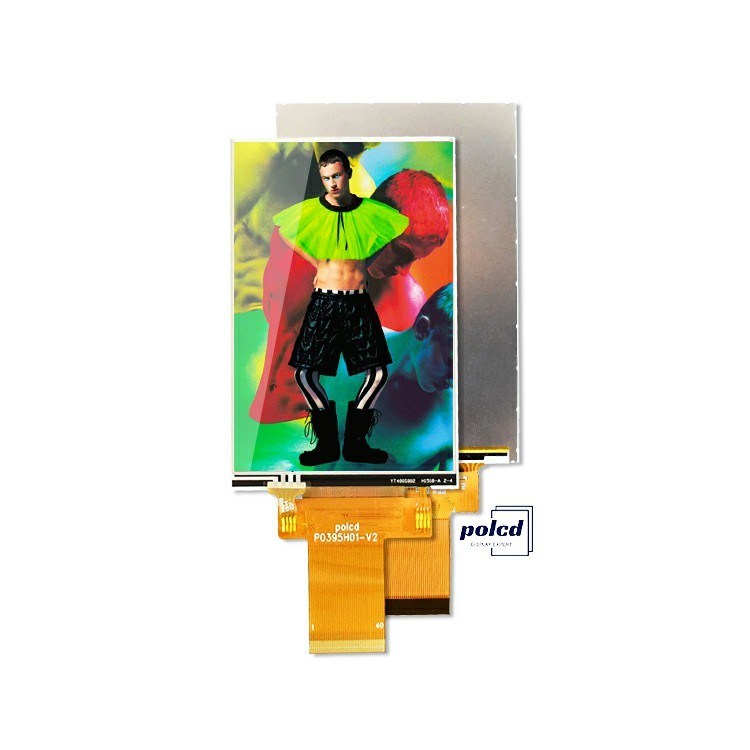

| Model | P0395H01-V2 |
| Screen Size | 3.95 inch |
| Number of Pixel | 320RGB(H)x480(V) |
| Display area | 55.68(H)x83.52(V)mm |
| Pins | 40 pins |
| LCM Outline Dimension | 60.88x94.57x2.3mm |
| Viewing Direction(eye) | 12 O’Clock |
| Display Color | 262K |
| Interface | RGB or 8/9/16/18 Parallel |
| Back-light | LED Side-light type |
| Drive IC | ILI9488 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
| Input voltage | 2.8V |
私達にあなたの照会を直接送りなさい
