起源の場所:
深セン、中国
ブランド名:
Polcd
証明:
RoHS, ISO9001
モデル番号:

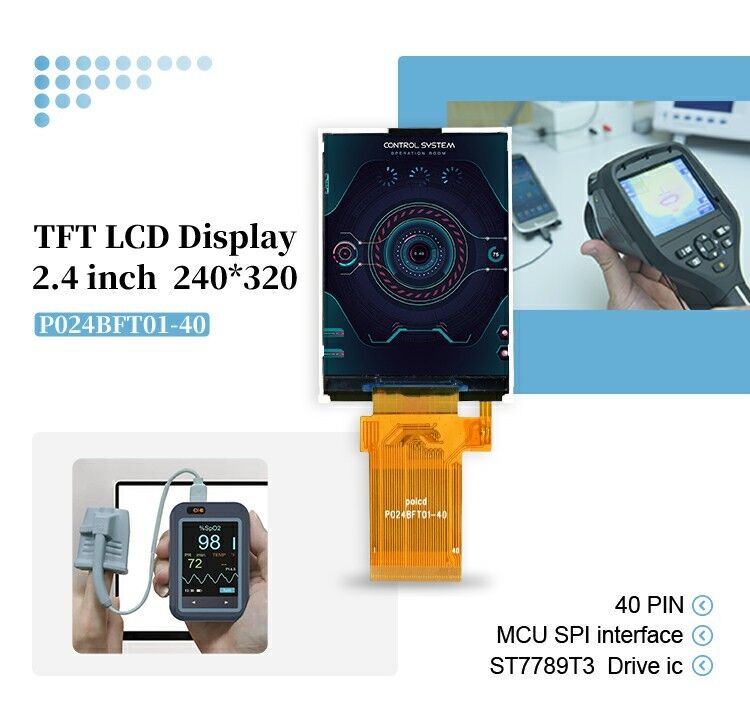

P024BFT01-40
私達に連絡しなさい
Parameter:
| Model | P024BFT01-40 |
| Screen Size | 2.4 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 36.72(H)x48.96(V)mm |
| Pixel pitch | 51(H)x153(V)um |
| Pin | 20 pin |
| Outline Dimension | 42.72x60.26x2.30mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | Transflective |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 250:1 |
| Interface | 3W4W SPI / MCU 8bit 16bit |
| Back-light | LED Side-light type |
| Drive IC | ST7789T3 |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |
