起源の場所:
深セン、中国
ブランド名:
Polcd
証明:
RoHS, ISO9001
モデル番号:
P024H037-IPS
私達に連絡しなさい
Parameter:
| Model | P024H037-IPS |
| Screen Size | 2.4 inch |
| Number of Pixel | 240RGB(H)x320(V) |
| Display area | 36.72(H)x48.96(V)mm |
| Pixel pitch | 0.153(H)x0.153(V)mm |
| Pins | 14 Pins |
| Outline Dimension | 42.72x60.26x2.25mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 800:1 |
| Interface | 4W SPI |
| Back-light | LED Side-light type |
| Drive IC | ST7789V |
| Operation Temperature | -20~70℃ |
| Storage Temperature | -30~80℃ |

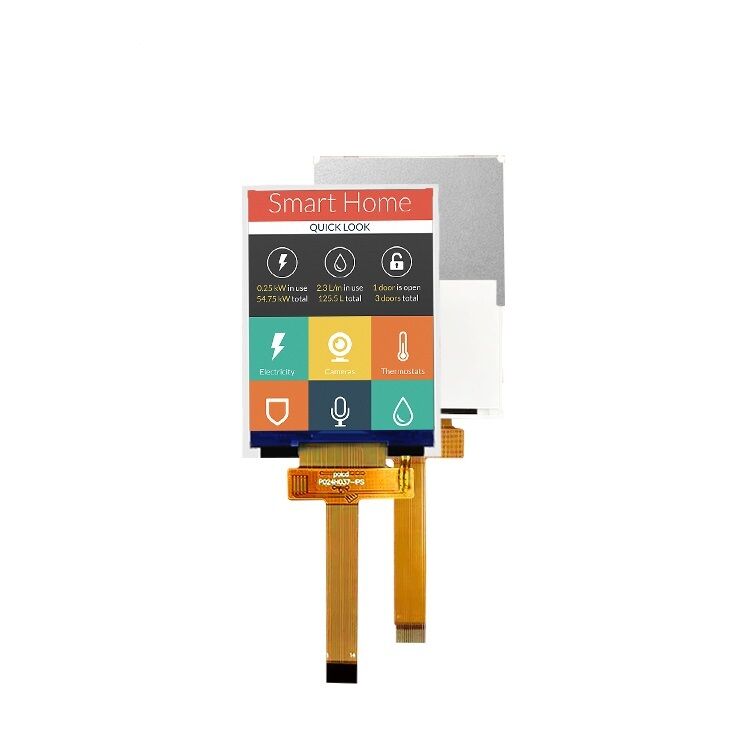

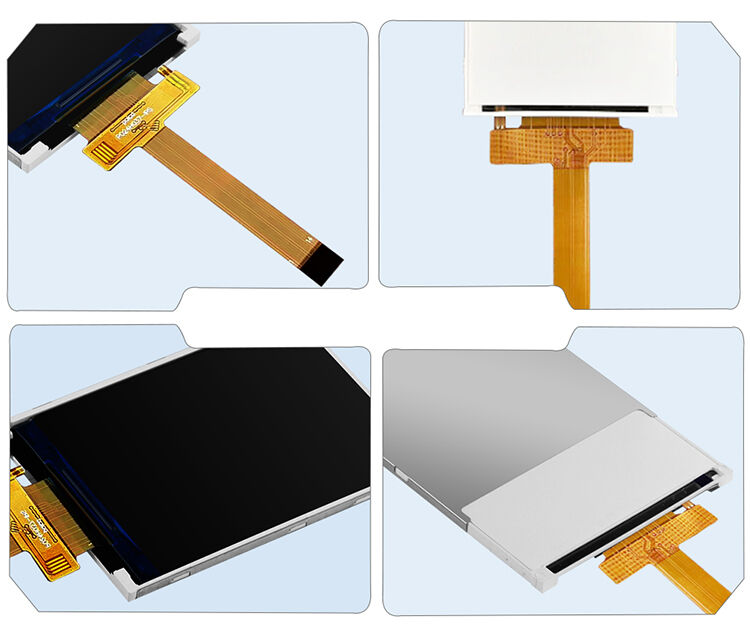

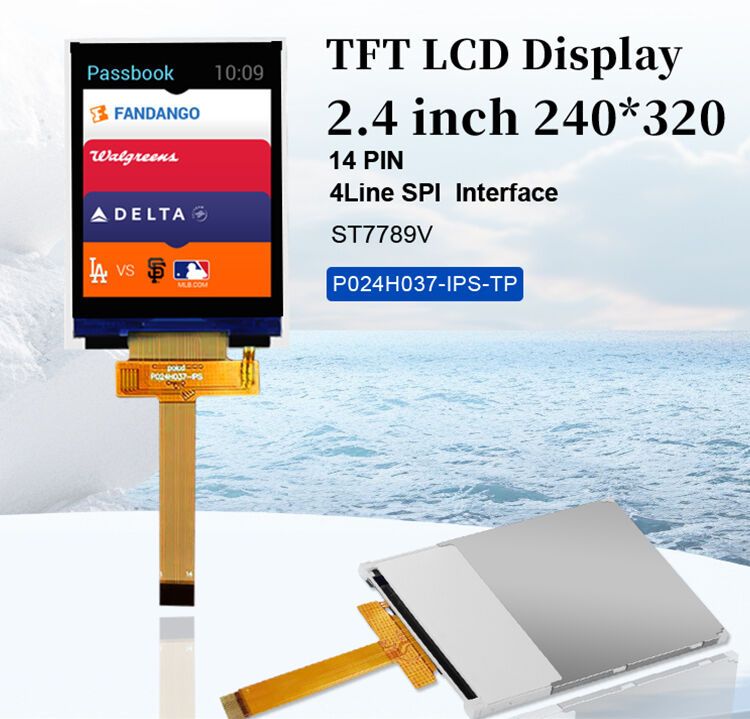

2.4 inch TFT display is a thin-film transistor liquid crystal display that measures 2.4 inches diagonally. It is a popular display size for various applications, including handheld devices, digital cameras, portable gaming consoles, and other embedded systems. The display has a high resolution and contrast ratio, a wide viewing angle, and a built-in resistive touchscreen. It also supports various communication protocols, such as SPI, I2C, and UART, making it compatible with a wide range of devices. Its low power consumption and built-in power management system make it ideal for battery-powered devices. Additionally, its compact and lightweight design makes it easy to integrate into various devices.
