起源の場所:
中国深Shenzhen
ブランド名:
Polcd
証明:
RoHS, ISO9001
モデル番号:
P028B119-IPS-CTP
私達に連絡しなさい

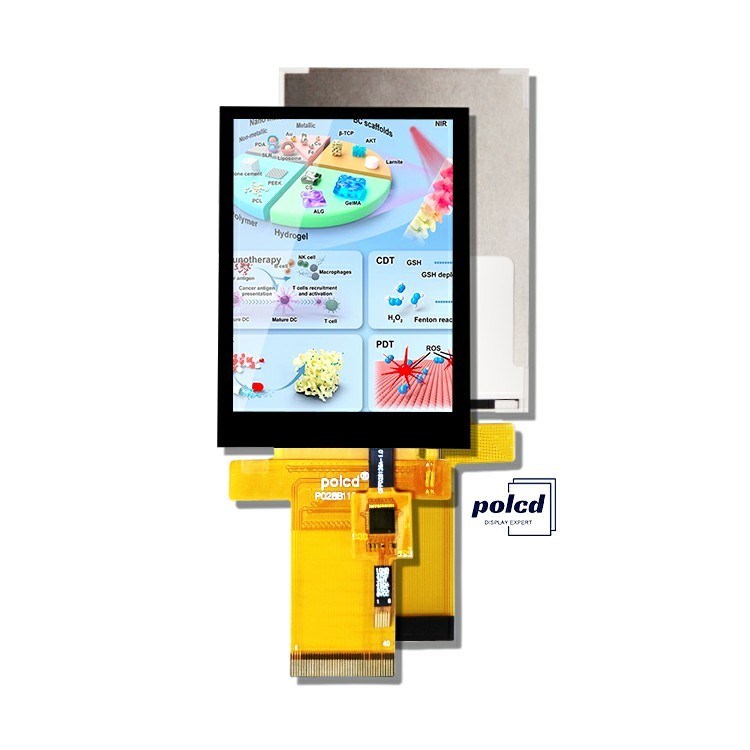

TFT Display Description:
Equipped with Full viewing angle, RGB interface, and brightness of 300 nit, this 2.8-inch TFT LCD display delivers a high-quality display suitable for various applications, especially in low-light environments.
Parameter:
| Model | P028B119-IPS-CTP |
| Screen Size | 2.8 inch |
| Number of Pixel | 480RGB(H)x640(V) |
| Pin | 40 pin |
| Display area | 43.20(H)x57.60(V)mm |
| Pixel pitch | 0.09(H)x0.09(V)mm |

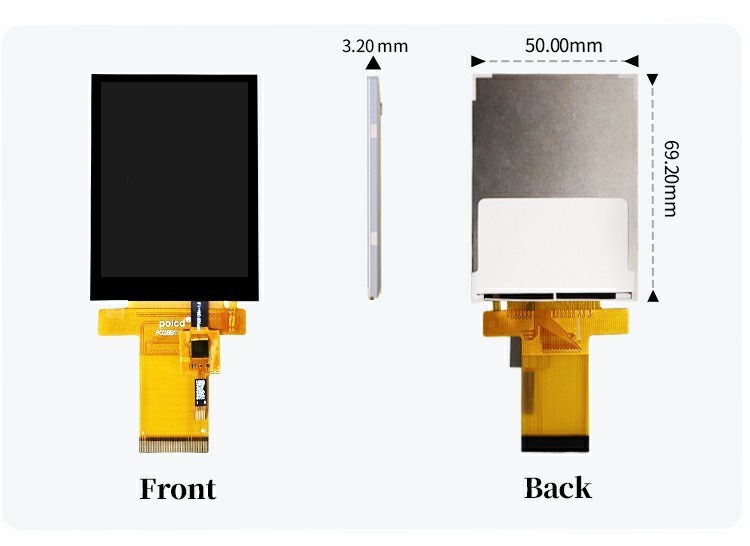

| Outline Dimension | 50.00x69.20x3.20mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 1000:1 |
| Interface | RGB 24bit |
| Back-light | LED Side-light type |
| LCM IC | ST7701S |
| CTP IC | GT911 |
| Operation Temperature | -20~70 |
| Storage Temperature | -30~80 |
