起源の場所:
深セン、中国
ブランド名:
Polcd
証明:
RoHS, ISO9001
モデル番号:
P035C074
私達に連絡しなさい
TFT Display Description:
This is a 3.5-inch TFT LCD display with a 4-line SPI interface and a 12 o'clock viewing angle. It provides high-quality display performance and is easy to integrate into various electronic devices. With a compact design and low power consumption, it is a reliable solution for applications that require a small display with clear images.

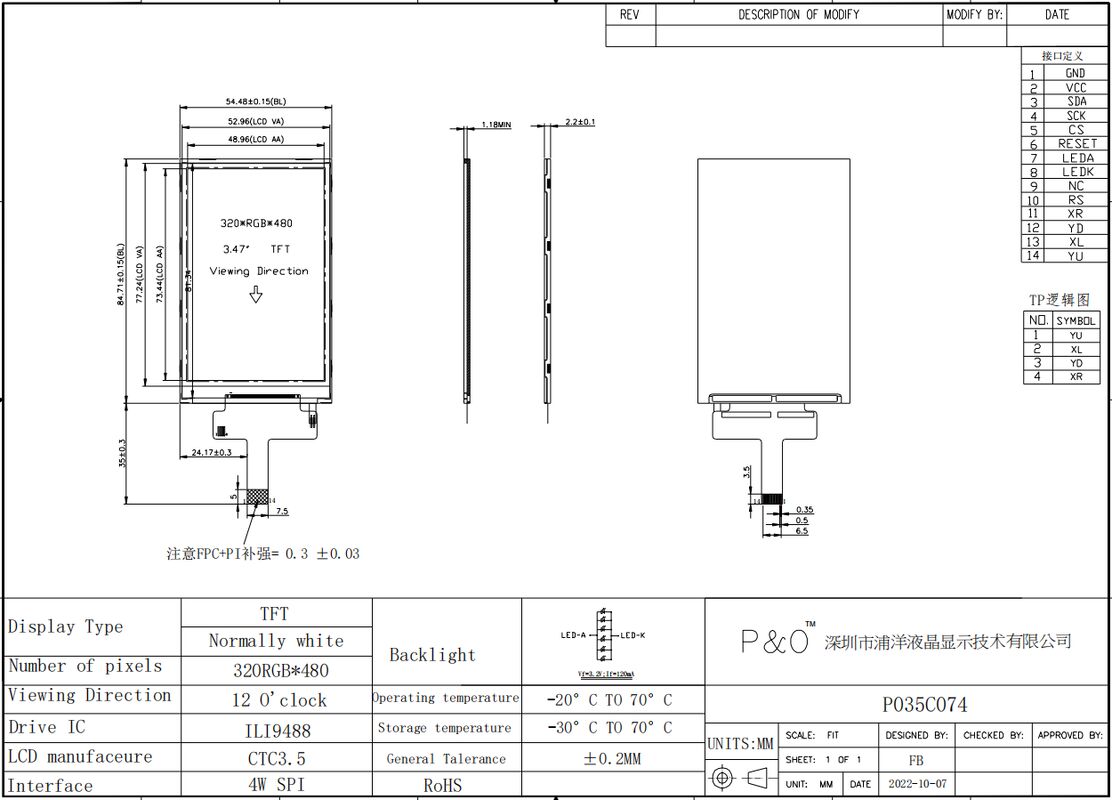

Parameter:
|
Model No. |
P035C074 |
|
Screen Size |
3.5 inch |
|
Number of Pixel |
320RGB(H)x480(V) |
|
Pin |
14 pin |
|
Display area |
48.96(H)x73.44(V)mm |
|
Pixel pitch |
0.153(H)x0.153(V)mm |
|
Outline Dimension |
54.48x84.71x2.20 |
|
Pixel arrangement |
RGB Vertical Stripe |
|
Display mode |
Normally White |
|
Viewing Direction(eye) |
12 0'CLOCK |
|
Display Color |
262K |
|
Luminance(cd/m2) |
400 nit |
|
Contrast Ratio |
500:1 |
|
Interface |
4Line SPI |
|
Back-light |
LED Side-light type |
|
Drive IC |
ILI9488 |
|
Operation Temperature |
-20~70 ℃ |
|
Storage Temperature |
-30~80 ℃ |
